As data centers, enterprise networks, and telecommunications infrastructures continue to expand, the demand for higher bandwidth and longer transmission distances has significantly increased. To support these requirements, 100G QSFP28 modules have become a widely adopted solution for enabling high-speed Ethernet connectivity in modern networks. These modules provide the flexibility and performance needed to handle large volumes of data traffic while maintaining reliable and efficient network operations.

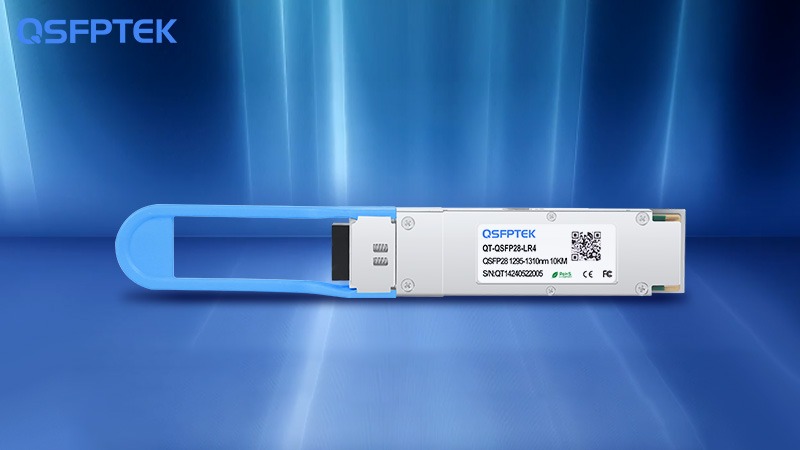

Among different types of 100G QSFP28 modules, the 100GBASE-LR4 optical transceiver is designed specifically for long-distance transmission over single-mode fiber. Operating around the 1310 nm wavelength range, the module uses wavelength division multiplexing technology to combine four optical lanes into a single fiber pair, enabling 100-gigabit data transmission over distances of up to 10 kilometers. Because of this capability, LR4 modules are commonly deployed in environments where data must travel across large campuses, between buildings, or across metropolitan networks.
Although the deployment of 100G QSFP28 modules may appear straightforward, ensuring optimal performance requires careful planning and consideration of several technical factors. From fiber infrastructure and optical compatibility to power consumption and monitoring capabilities, each aspect can influence the stability and efficiency of the overall network. Understanding these considerations helps network engineers design more reliable high-speed links and avoid potential connectivity issues during deployment.
Understanding the Transmission Technology of 100GBASE-LR4
Before deploying 100GBASE-LR4 modules, it is important to understand the transmission technology that enables their long-distance capabilities. The LR4 standard relies on wavelength division multiplexing to transmit four independent optical signals over a single pair of single-mode fibers. Each channel operates at approximately 25 Gbps and uses slightly different wavelengths around the 1310 nm range. These wavelengths are multiplexed inside the module before being transmitted through the fiber and then demultiplexed at the receiving end.
This architecture allows the module to achieve high aggregate bandwidth while maintaining compatibility with duplex LC connectors and standard single-mode fiber infrastructure. Compared with short-reach optical modules that rely on parallel fiber connections, the LR4 design simplifies cabling by requiring only two fibers for transmission and reception. This makes LR4 modules particularly suitable for long-distance links where fiber resources need to be used efficiently.
Ensuring Proper Fiber Infrastructure
The performance of a 100GBASE-LR4 link is closely tied to the quality and characteristics of the fiber infrastructure. These modules are designed to operate with single-mode fiber, which supports long-distance optical transmission with lower attenuation compared with multimode fiber. When deploying LR4 modules, it is essential to verify that the installed fiber meets the required specifications and is capable of supporting the intended transmission distance.
Fiber quality plays an important role in maintaining signal integrity over long links. Excessive attenuation, poor connector quality, or improper splicing can degrade the optical signal and lead to reduced link performance or intermittent connectivity issues. In addition, the use of high-quality LC connectors and well-maintained fiber pathways helps ensure stable optical transmission. Careful inspection and testing of the fiber infrastructure before deployment can significantly reduce troubleshooting efforts later in the network lifecycle.
Managing Optical Power and Link Budget
Another important factor in deploying 100GBASE-LR4 optical modules is managing the optical power budget of the link. The optical power budget represents the allowable difference between the transmitter output power and the receiver sensitivity after accounting for fiber attenuation and connector losses. Maintaining a balanced power budget is essential to ensure that the receiver can correctly detect the incoming optical signal.
If the optical signal becomes too weak due to excessive fiber loss or poor connections, the receiver may struggle to decode the data accurately, leading to increased bit error rates or link instability. Conversely, if the received optical power is too high, it may exceed the receiver’s overload threshold, which can also negatively affect performance. Network engineers often calculate the expected link loss during the design phase to ensure that the LR4 module operates within its specified power range throughout the entire transmission path.
Considering Heat Dissipation and Power Consumption
Compared with some short-reach optical modules, 100GBASE-LR4 transceivers typically consume more power due to the additional components required for wavelength multiplexing and long-distance transmission. As a result, heat dissipation becomes an important consideration when deploying these modules in switches or network equipment.
High-density network switches may host dozens of QSFP28 ports, and when many LR4 modules are installed simultaneously, the cumulative power consumption can generate significant heat within the device. Adequate airflow and cooling mechanisms are therefore necessary to maintain stable operating temperatures. Ensuring that network equipment is installed in a well-ventilated environment and that cooling systems function properly can help prevent overheating and maintain consistent module performance.
Monitoring Link Performance with DDM
Modern optical transceivers often include digital diagnostic monitoring capabilities that provide real-time information about the module’s operating conditions. Many 100GBASE-LR4 modules support digital diagnostic monitoring, allowing network administrators to track parameters such as temperature, voltage, transmit power, and receive power.
These monitoring features are valuable for maintaining long-term network reliability. By observing the optical power levels and environmental conditions of the module, administrators can detect early signs of fiber degradation, connector contamination, or abnormal temperature changes. This proactive monitoring approach allows potential problems to be identified and resolved before they affect network performance or cause service interruptions.
Ensuring Compatibility with Network Equipment
Compatibility between optical modules and network equipment is another key factor in successful deployments. Although the QSFP28 form factor is standardized, different switch vendors may implement firmware or compatibility requirements that affect which modules can be used with their devices. Ensuring that the selected LR4 module is compatible with the target switch or router helps avoid issues such as module recognition failures or link initialization problems.
Many network operators verify compatibility through vendor documentation or by using modules that are tested and validated for specific platforms. Ensuring proper compatibility not only guarantees stable operation but also simplifies network management and maintenance.
Conclusion
Deploying 100GBASE-LR4 optical modules enables networks to achieve high-speed data transmission over distances of up to 10 kilometers, making them a valuable solution for data center interconnection, campus networks, and metropolitan network environments. However, successful deployment requires careful consideration of multiple technical factors that influence link performance and reliability.
By understanding the underlying transmission technology, ensuring proper fiber infrastructure, managing optical power budgets, addressing heat dissipation requirements, monitoring module performance, and verifying equipment compatibility, network engineers can build stable and efficient 100G optical links. With thoughtful planning and attention to these considerations, 100GBASE-LR4 modules can deliver the long-distance connectivity and high bandwidth required in modern networking environments.
